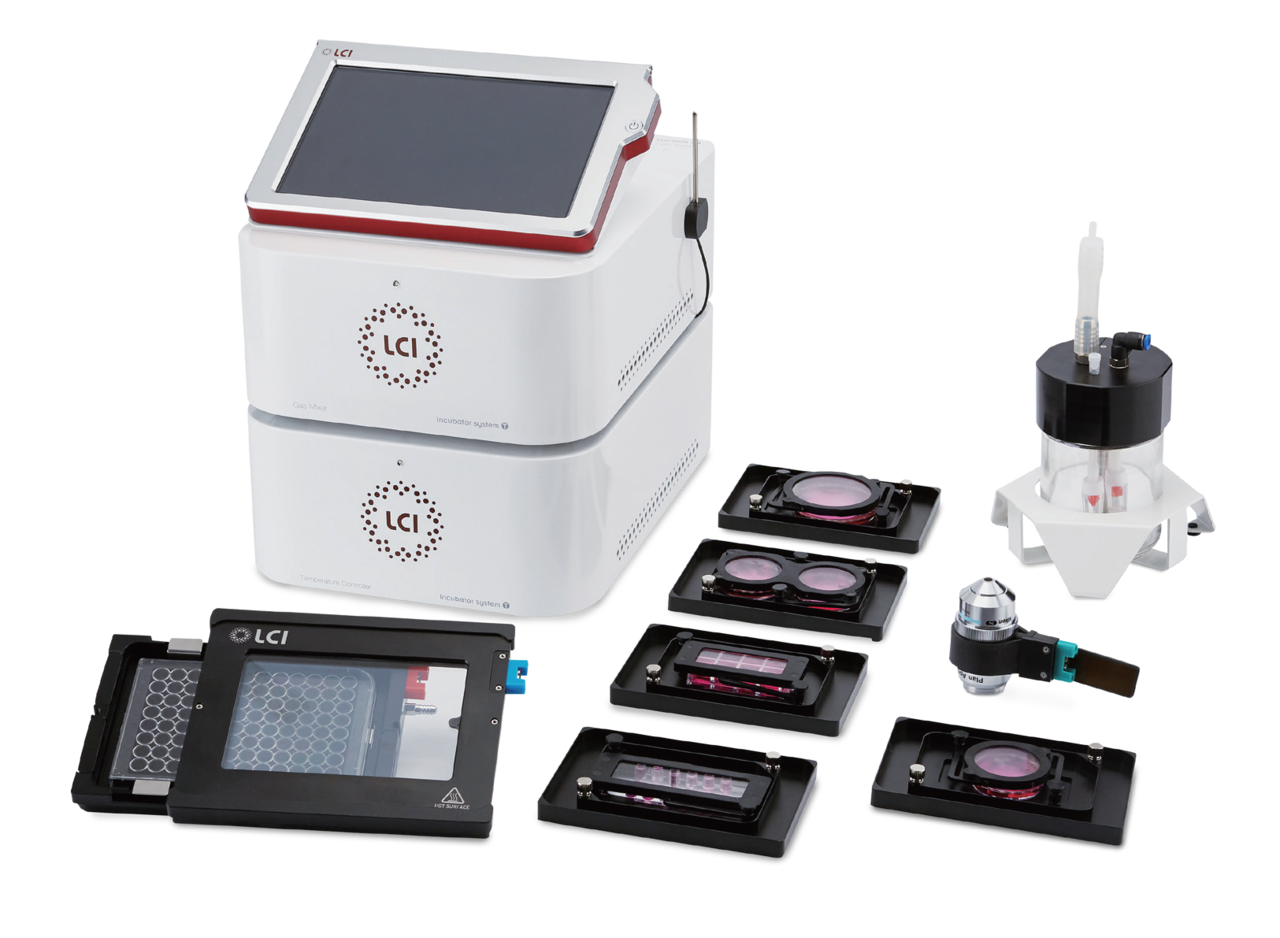

Incubating System T






Incubator T Series is an intuitive and integrated stage-top live cell incubator system,

maintains all essential parameters in a physiological state ensures optimal experimental

conditions for cell viability on the microscope for the purpose of ‘ happiness for the cells

and success for researchers.’ It is a system that can maintain the right temperature and pH for cells to live, or create and maintain an environment suitable for the experimental characteristics, keeping live cells healthy during imaging on a microscope or for days to weeks.


Incubator T Series provides precisely controlled conditions including optimized temperature, humidity, CO2, and optional O2 levels for long-term live cell imaging with various Magnetic Imaging Chambers fitted perfectly. The temperature of the incubator main body, incubator cover, humidifier, lens warmer, and gas concentration is controllable and recordable. The gas gradients are programmable by CCP(Computer Controlled Program) software.


FEATURES

Automatic Sensing Mode Temperature control by

3 types of heating feedback

1. External Mode [World-wide 1st]

 The optimal temperature control algorithm minimize deviation and optimize temperature of the incubator by feedback control from outside temperature automatically.


2. Sample Mode

 The optimum incubator temperature is adjusted by sensing the temperature of sample or target.


3. Manual Mode

 The environments for researchers’ purpose can be performed by setting the temperature desired by the user.

* LCI’s incubator system maintains the humidity over 90%.

·Compatible with various of microscope

·Compact system & Easy assembly

·Custom incubating system is available

Easy-to-use

·Available with various chamber types

·Magnetic attachment cable

 - Patent magnetic connection

 - Easy installation & maintenance

 - Intuitive connection

·Touchpad control

 - Wide screen & Intuitive GUI

 - Easy set-up/control/handle

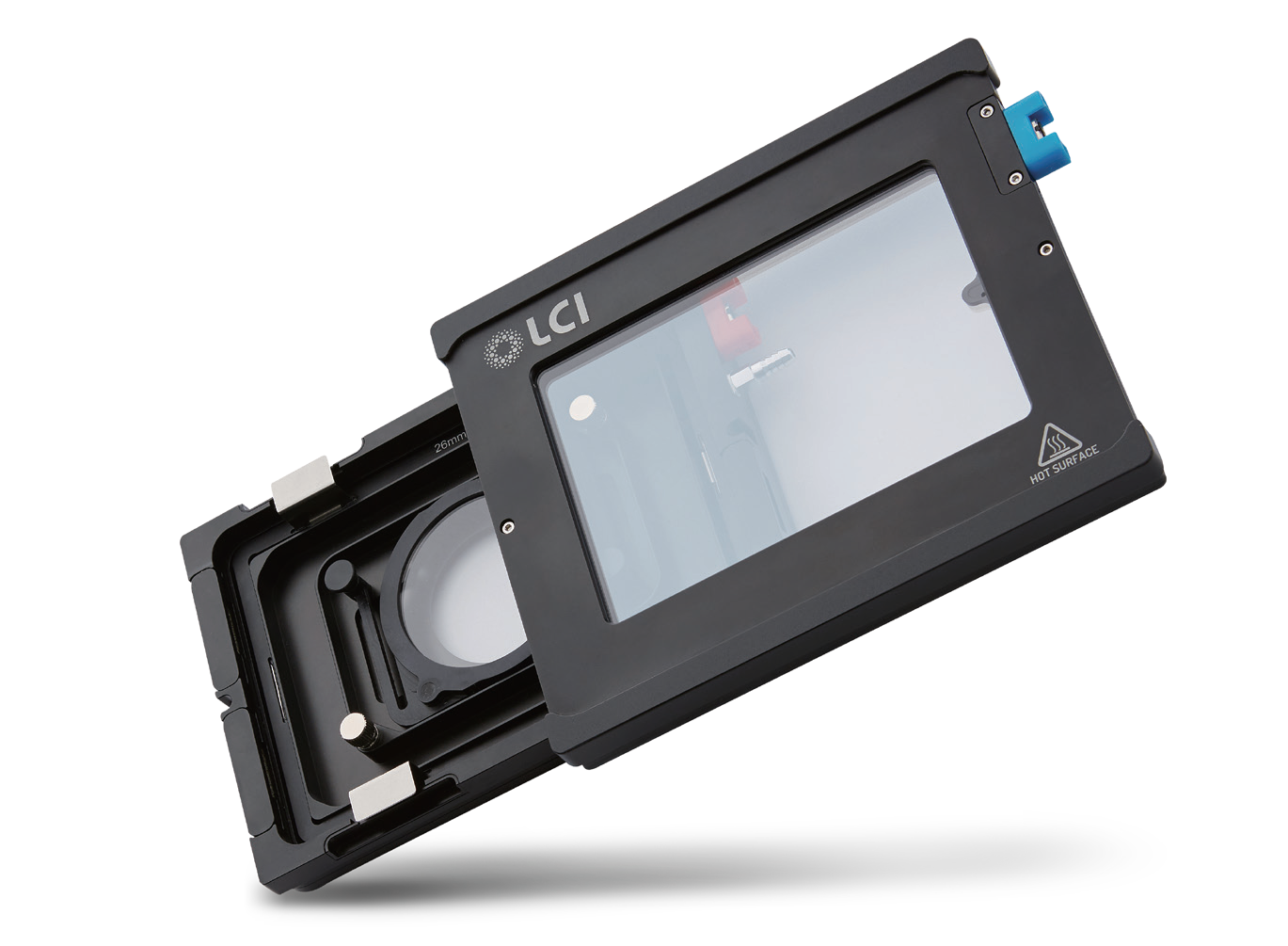

·Sliding incubator cover

·Whole open incubator cover

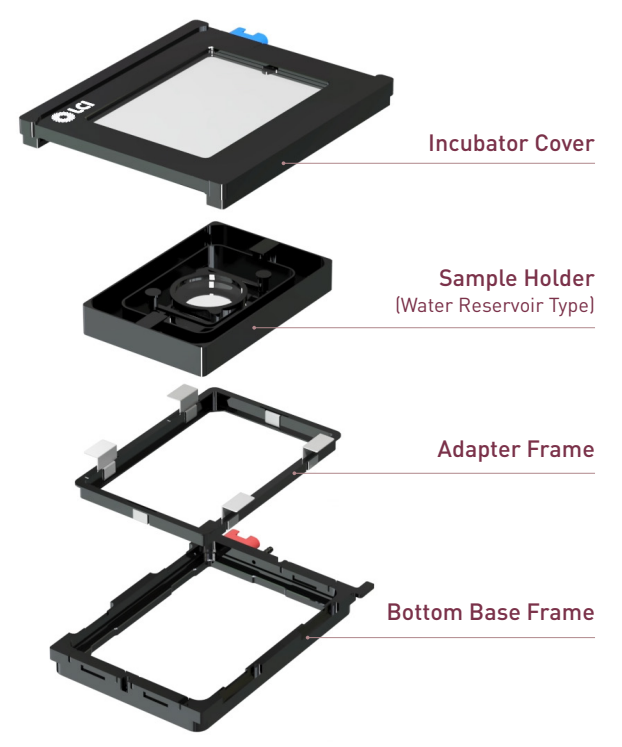

INCUBATOR

Incubator offers optimal on-stage cell culture environment by maintaining the temperature, humidity, and pH during time lapse imaging. Thermal design of the incubating cover and body are designed to provide heat inside the incubator.

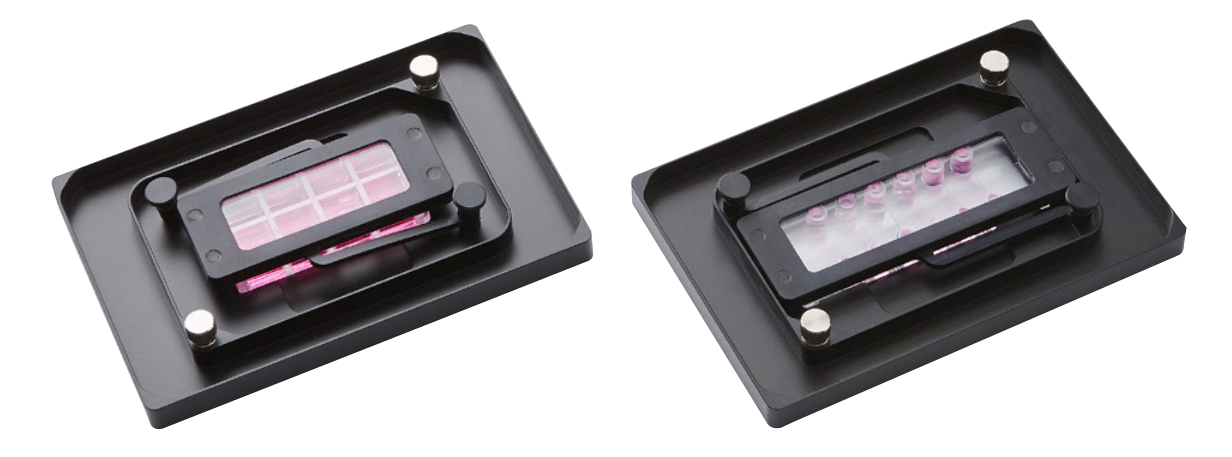

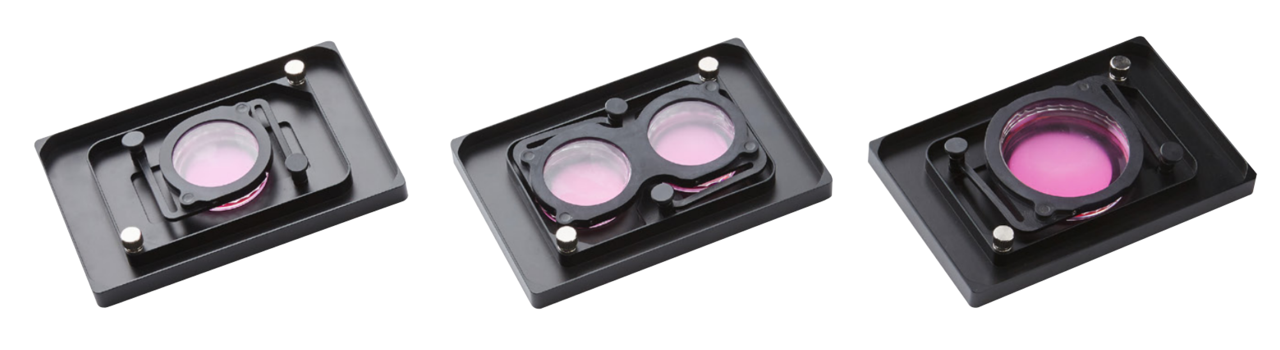

Water Reservoir Type Sample Holder

The water reservoir around the sample holder improves the maintenance of humidity, preventing media from evaporation.

35mm Culture Dish , Two-35mm Culture Dish , 50/60mm Culture Dish
35mm Culture Dish , Two-35mm Culture Dish , 50/60mm Culture Dish
Chambered Coverglass , Chambered Glass
Chambered Coverglass , Chambered Glass

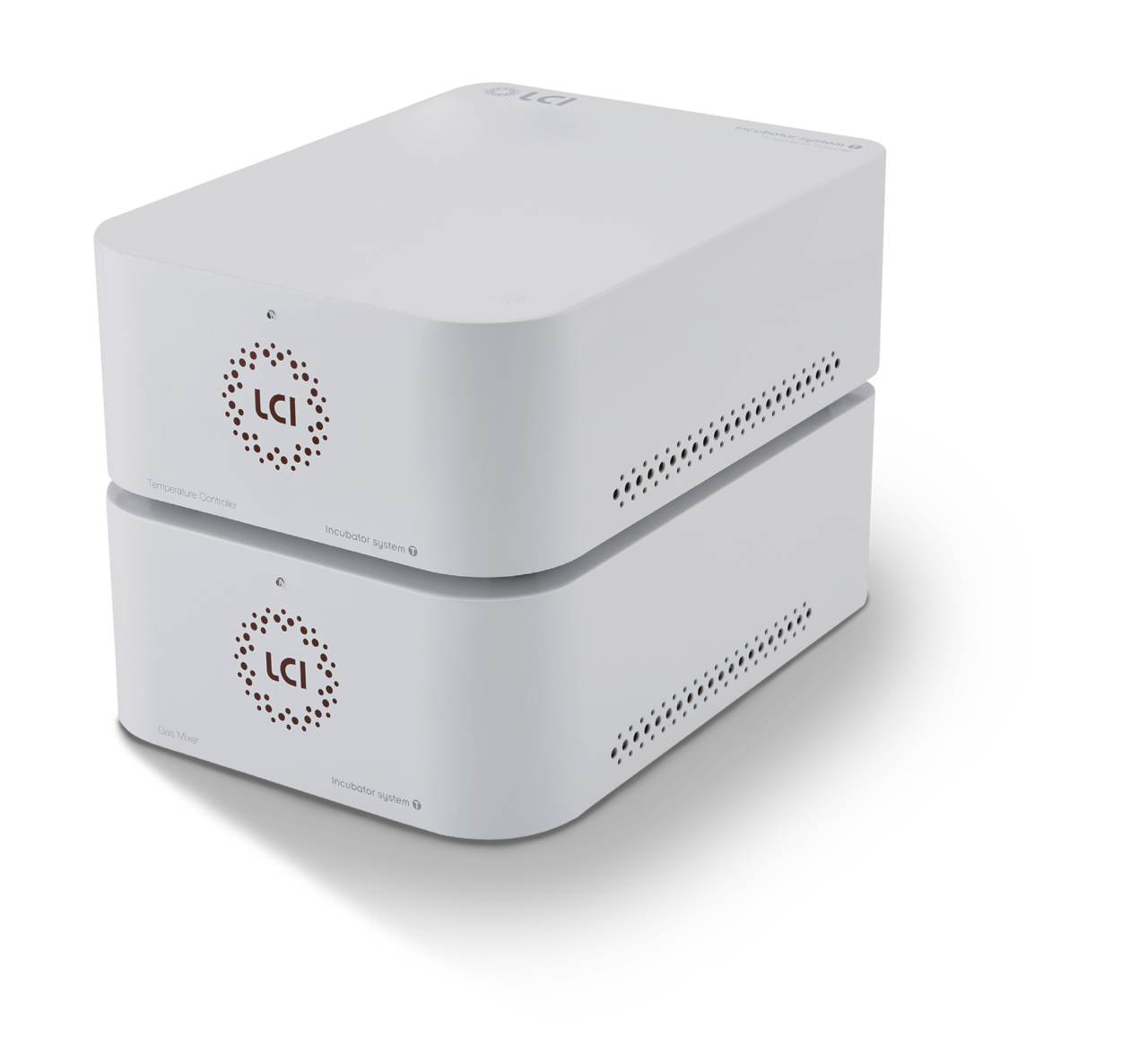

CONTOLLER

Temperature Controller

Provides stable and precise control of sample temperature for long-term imaging. Using PID Control, it enables maintaining the temperature of all heating parts including incubator cover, incubator main body, humidifier, and lens-warmer.


• 3 types of heating control : External, Sample (K-type),    Manual sensing feedback

• 4 heating channels: Incubator cover, body,

    humidifier, lens warmer

• Simple cable attachment with color connector

• Stable and durable temperature distribution

• Real-time thermal response, graph, alarm function

• PID control of all parameters

Gas Mixer

Provides accurate concentration gas of CO², N², or O ² for research application

• Available with 3 types of gas controller

• Solenoid valve and a reservoir for uniform gas blends

• PID control system regulates gas concentration

• Internal air pump for a stable gas flow

• Straight quick connection by tubing fittings

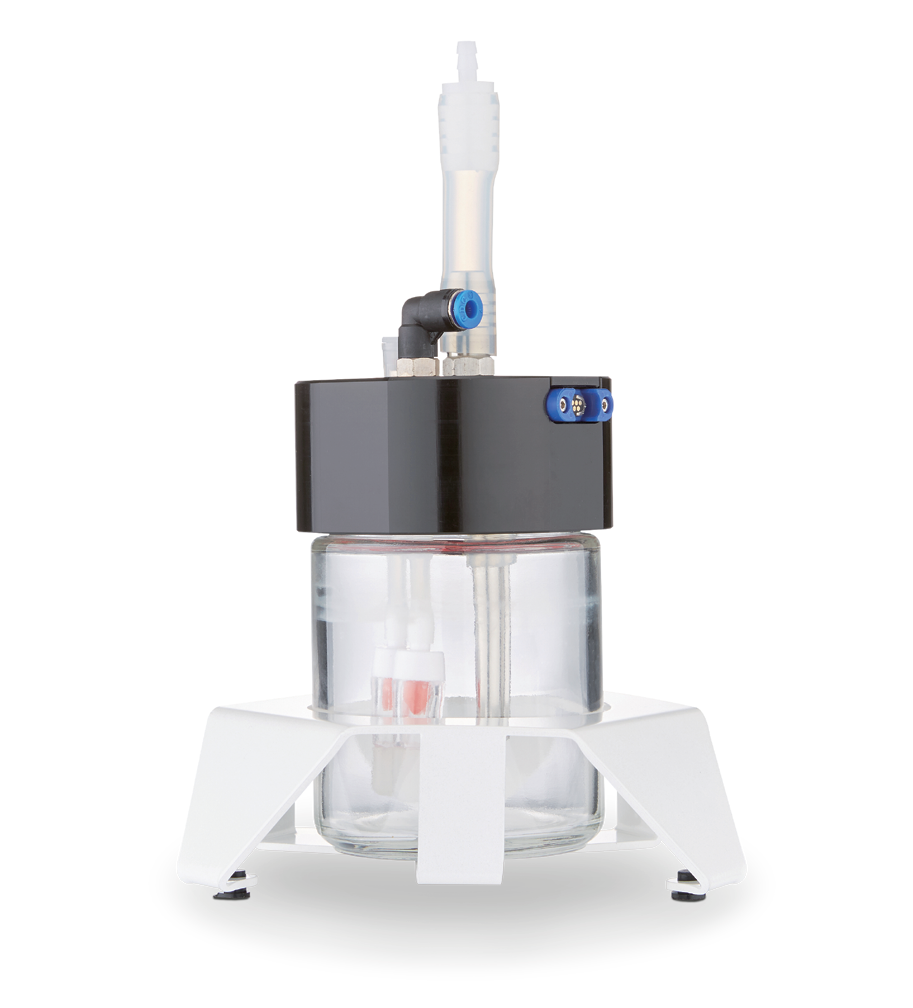

Humidifier

Humidifier generates and helps the incubator to maintain relative humidity, and prevents evaporation which can cause cell damage. CO² gas flows into incubator through heated water controlled by the humidifier sensor.


• Keeps saturated humidity in the incubator

• Maintains osmolality of medium by preventing evaporation

• Internal thermal sensor for accurate feedback

• Magnetic connector

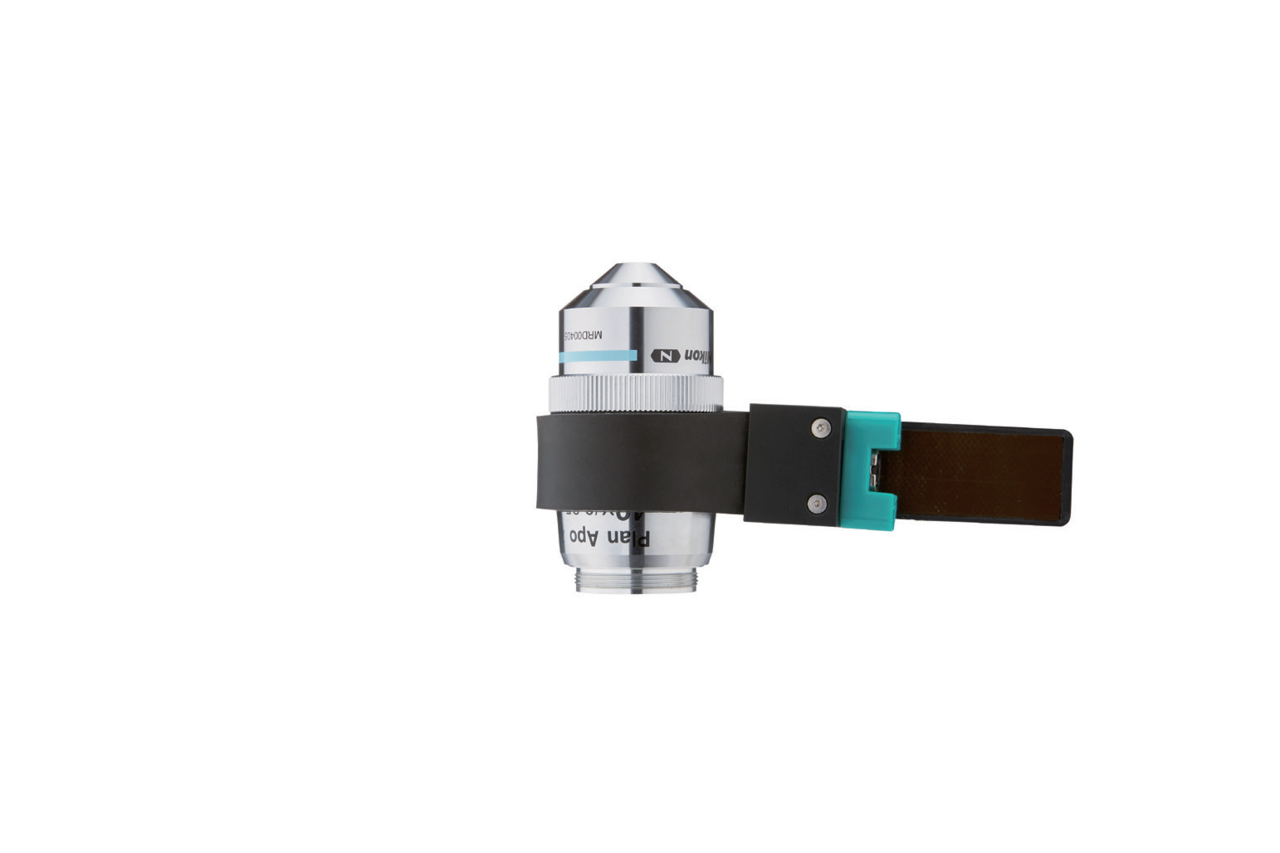

Lens Warmer

For high-resolution imaging, it is necessary to control the temperature of the immersion objective lens. Oil, glycerin, or water acts as a thermal coupling medium which draws heat away from the specimen. To avoid heat loss, wrap the lens warmer onto the objective lens to generate and maintain a proper temperature. Its silicone band fits to all types of objectives.


• For high-magnification & high-resolution imaging

• Uses magnetic attachment technique prevents cord breakage

   by tangling or over tension

• Specialized silicone material heating band wraps the lens without gap, preventing thermal dissipation from sample temperature

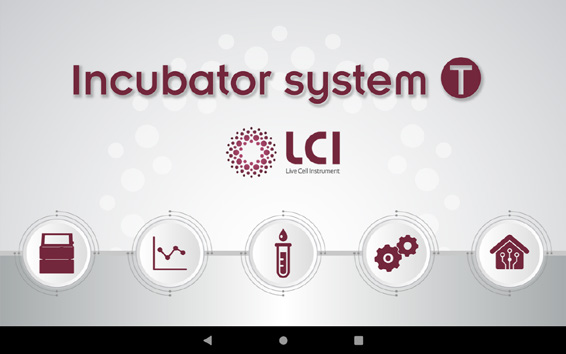

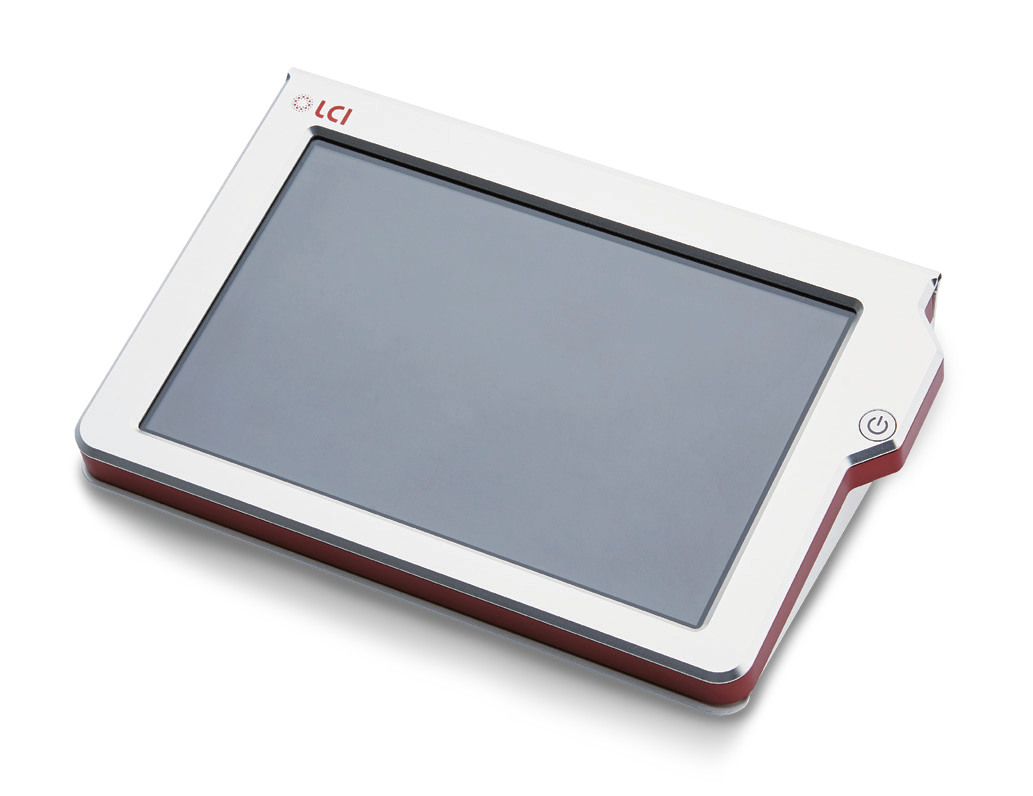

Remote Touchpad

Android tablet PC provides intuitive graphical screen for all of parameters required to control incubator system.


• Controls system & all parameters by smartphone and other devices

• Intuitive & easy GUI for real-time temperature and control

• Automatically save and check real-time data with PC

• Enables on-line troubleshooting

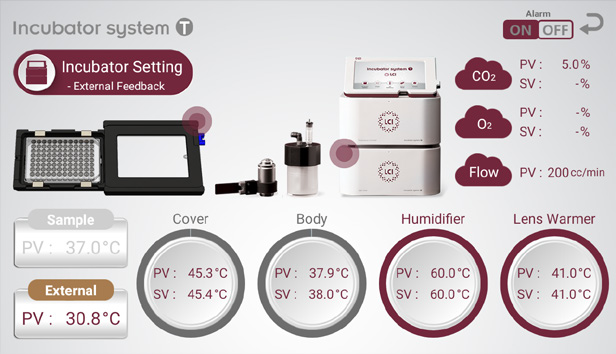

Graphical User Interface

The Incubator System T is an intuitive and user- friendly operator, which can be remote-controlled by smartphones and other mobile devices through app. The operator controls all parameters for the system anytime & anywhere in real time.

Cell Growth

• Cell incubating by LCI stage-top

   incubator system T : 37℃, 5% CO2

• Phase contrast Imaging with Time Lapse

• CHO cell

• 20x Ph1 DLL Objective Lens / NA: 0.5

SPECIFICATION

Incubator


Dimension
171.5(W) x 139(D) x 15.5(H) mm

Dimension

(Incubator Body)

170(W) x 124.5(D) x 20(H) mm

170(W) x 124.5(D) x 24(H) mm

Glass

Dual Glass

- Gorilla 6

- ITO heating glass


Weight

250g (Incubator cover)

155g (Incubator body, 26mm)

196g (Incubator body, 30mm)

Cable Type
Magnet

Temperature Controller


Dimension
220(W) x 300(D) x 100(H) mm

Operation

Touch Pad

Weight

3.24kg

Ambient +3℃  ~ 40℃

Ambient +3℃  ~ 40℃

SV Resolution
0.1℃
Sensor

PT 100ohm (5ea)

Thermocouple sensor (K-type)

Control Method
PID
Volume Humidifier
250cc
Volume Reservoir
50cc
Power
100~240V

Gas Mixer


Dimension
220(W) x 300(D) x 100(H) mm
Operation
Touch Pad
Weight
4.44kg
Gas Type
100% CO²
100% O²
100% N²
Input Gas Pressure
0.12Mpa
0.15Mpa
0.15Mpa
Concentration RangeCO²
0~20%
O²
0~99%
Accuracy
±0.1%
SV Resolution
0.1%
Flow Rate
Max 200ml/min
Sensor
CO²
NDIR
O²
Thermal conductive
N²
Thermal conductive
Control Method
PID
Control Valve
CO²
Solenoid valve
O²
Proportional solenoid orifice
N²
Proportional solenoid orifice
Power
100~240V

Related Product

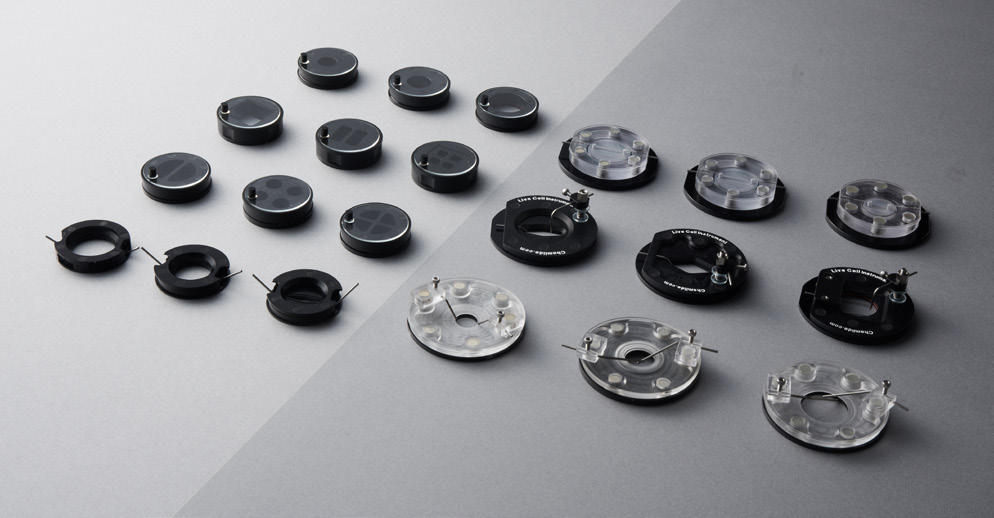

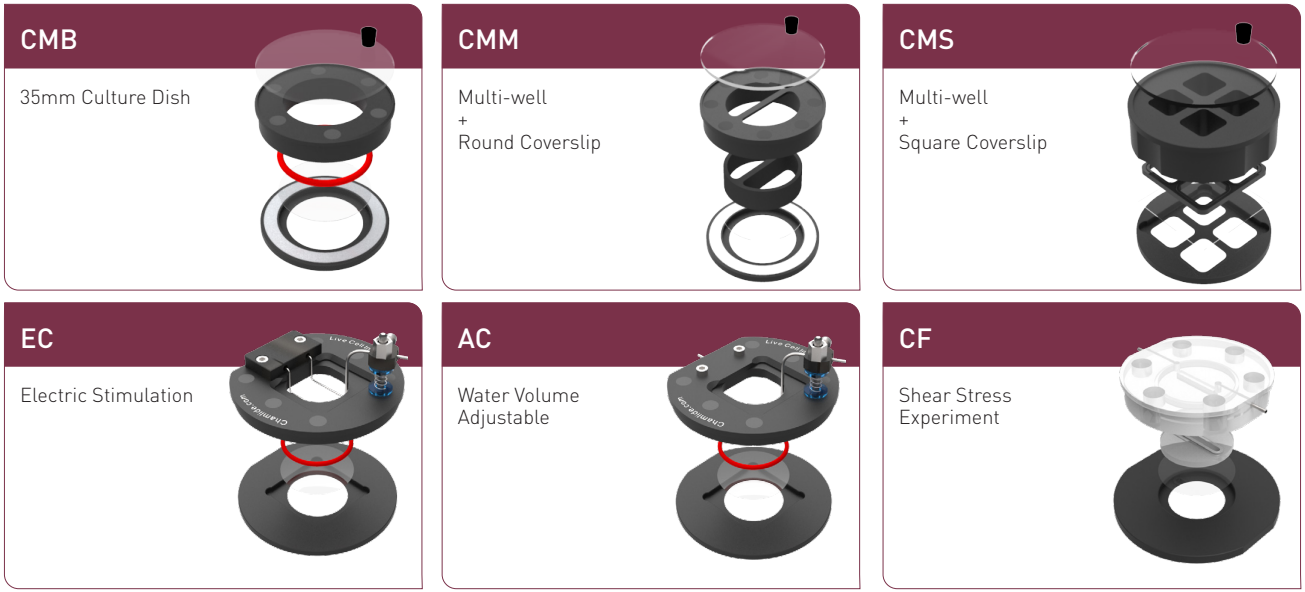

[Magnetic Imaging Chamber]

• Patent magnetic attachment technology

• Coverslip bottom magnetic chamber system

• High resolution image

• Semi-permanent and non-toxicity

• Various design of chambers

• Customized design is available*
